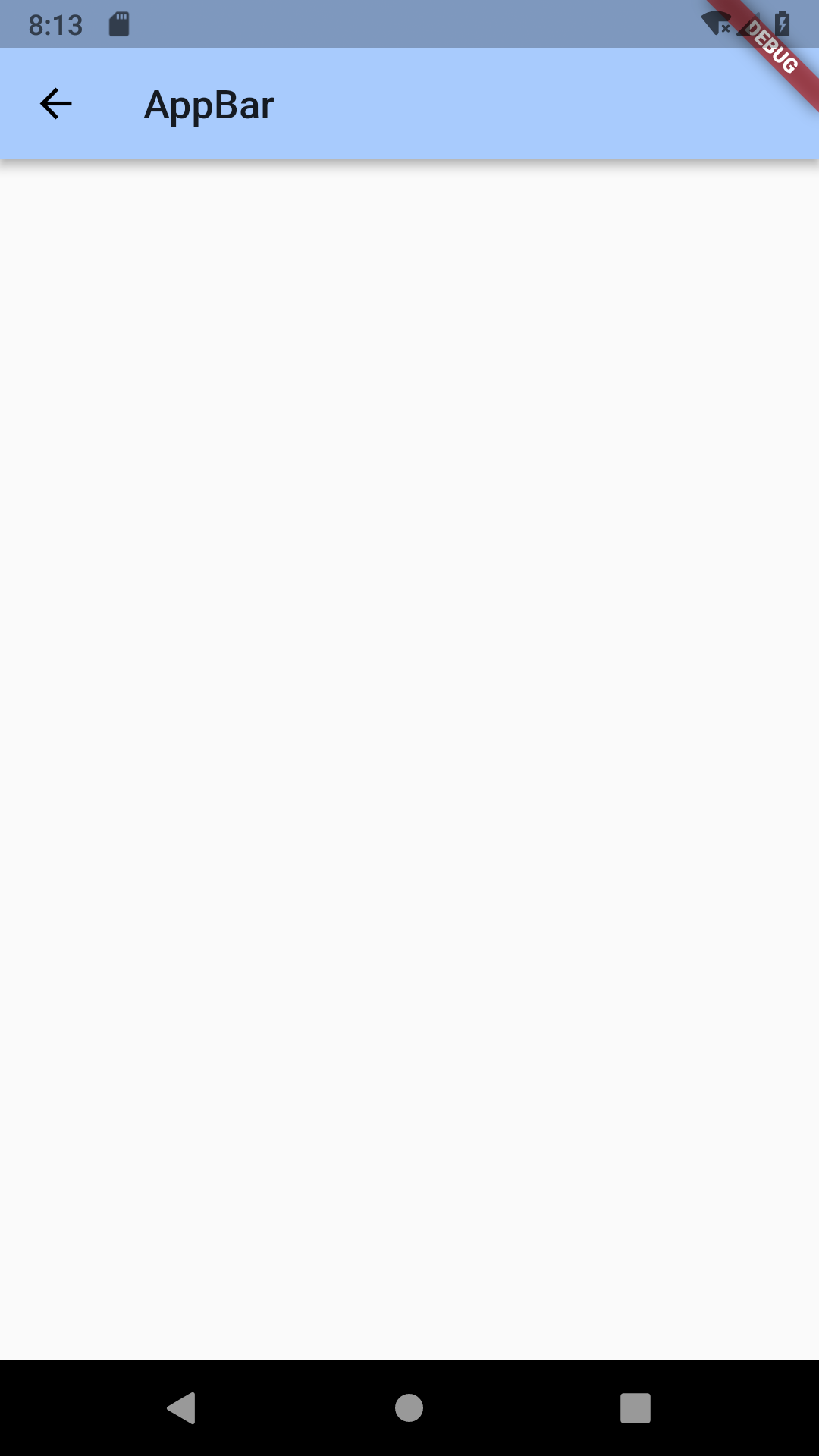

# Widgets 07 | AppBar ## Before start In every tutorial, we need create a page to contain our code to show. So let's look at our code. ```dart import "package:flutter/material.dart"; import 'package:flutter_widgets/const/_const.dart'; class AppBarPage extends StatefulWidget { @override _AppBarState createState() => _AppBarState(); } class _AppBarState extends State { @override Widget build(BuildContext context) { return Scaffold( appBar: AppBar( title: Text(PageName.APP_BAR), ), body: Text("body")); } } ``` We have used the `AppBar` in our code above, just a simple one. It will show a app bar with a title. It is easy to use. It usually use with the `appBar` parameter of the `Scaffold` . But in this tutorial, I will try to use it as a common widget to describe its parameter. Hope you do not misunderstand my style. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWjOEI5RZb33AoexsCv%2F-LWjT_lah9yqWybbhqTO%2Fapp_bar_01.png?alt=media\&token=63355cde-2f8a-4e14-875b-0a44593d7a39) ## Constructor We have use the `AppBar` above, So let's look at its constructor. ```dart AppBar({ Key key, this.leading, this.automaticallyImplyLeading = true, this.title, this.actions, this.flexibleSpace, this.bottom, this.elevation = 4.0, this.backgroundColor, this.brightness, this.iconTheme, this.textTheme, this.primary = true, this.centerTitle, this.titleSpacing = NavigationToolbar.kMiddleSpacing, this.toolbarOpacity = 1.0, this.bottomOpacity = 1.0, }) ``` So let's look at the its parameters as follows. ## automaticallyImplyLeading If you don't want the left-arrow on the app bar. you can use this parameter to hide it. ```dart AppBar _autoLeadBar() => AppBar( title: Text(PageName.APP_BAR), automaticallyImplyLeading: false, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWk1YT8c0oEQVJaiBw3%2Fapp_bar_02.png?alt=media\&token=96a6f3f5-83cc-4b11-93cd-c841ff54d6d6) But you should know, if you the leading is not null, then this parameter hasn't effect. ## leading This parameter controls the space as the left-arrow. So if you want to use some special function here. You can use this parameter, it is just a widget, but the space is strict. I often use the `InkWell` with a `Icon` as below. ```dart AppBar _leadingBar() => AppBar( title: Text(PageName.APP_BAR), leading: InkWell( child: Icon(Icons.menu), onTap: () { print("click menu"); }, ), ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWk2mOebzKCvCsWo9g0%2Fapp_bar_03.png?alt=media\&token=de084571-18a9-4543-bf39-84168a9daf5f) ## actions If you want to add some widget in the right, the actions parameter you should know to use. ```dart AppBar _actionBar() => AppBar( title: Text(PageName.APP_BAR), actions: [ InkWell( child: Icon(Icons.search), onTap: () { print("click search"); }, ), SizedBox(width: 10), InkWell( child: Icon(Icons.more_vert), onTap: () { print("click more"); }, ), SizedBox(width: 20) ], ); ``` We have added the search and more icon at the right of the app bar. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWk4UzlrsnEzi_UFFPd%2Fapp_bar_04.png?alt=media\&token=6851ffda-bf53-4c70-9255-770a62f4880f) ## bottom When we look at the definition of the bottom parameter. we can see it is `PreferredSizeWidget`. ```dart final PreferredSizeWidget bottom; ``` It is an abstract class.So we need use its subclass. The `PreferredSize` is a good choice to use. The `child` is a widget, the `preferredSize` is the `Size`. ```dart Widget _bottomBar() => AppBar( title: Text(PageName.APP_BAR), bottom: PreferredSize( child: Container( alignment: Alignment.center, color: RED, constraints: BoxConstraints.expand(height: 50), child: Text( "bottom", style: TextStyle(fontSize: 30), ), ), preferredSize: Size(50, 50), ), ); ``` It will show as follows. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWk7h7FnzqPrXOb6Pv0%2Fapp_bar_05.png?alt=media\&token=3c3acf47-a693-4c91-a01f-de13bd19045b) ## elevation This parameter controls the shadow of the `AppBar`.It is similar with `RaiseButton` I have tell before. ```dart Widget _elevationBar() => AppBar( title: Text(PageName.APP_BAR), elevation: 10, ); ``` This will show as right in the picture below\.The left one is `elevation = 4`. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWkAEbqxJ4DlyUDgGJj%2Fapp_bar_06.png?alt=media\&token=a7e7a8a4-d666-4b38-bb73-69478b662450) ## backgroundColor If you want to change the color of the `AppBar`, you can use the `backgroundColor` as follows. ```dart Widget _backgroundBar() => AppBar( title: Text(PageName.APP_BAR), backgroundColor: PURPLE, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWkBOdp94PuzpW6AkMM%2Fapp_bar_07.png?alt=media\&token=c642f692-3c9e-4a89-927d-9a4c9b42d24b) ## brightness The parameter will change the text, icon color of the status bar. ```dart Widget _brightBar() => AppBar( title: Text(PageName.APP_BAR), brightness: Brightness.dark, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWk0NsEQcCb8Op_ZrKf%2F-LWkDEhDW_JVKvRbRze-%2Fapp_bar_08.png?alt=media\&token=f0da20dd-7a52-40c5-9366-bbf4ab7bf5dc) ## iconTheme When we look at the parameter carefully, we can see it is `IconThemeData`, its constructor is below. We have used the color, size several times, so I do not explain it. The `opacity` controls the transparency of the `Icon`. The value is from 0 to 1. ```dart IconThemeData({this.color, double opacity, this.size}) ``` Let's use it. ```dart Widget _iconThemeBar() => AppBar( title: Text(PageName.APP_BAR), iconTheme: IconThemeData(color: Colors.white, size: 20, opacity: 0.9), ); ``` The left-arrow will change to white. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkGJ2XaxNpWQOu9OLc%2Fapp_bar_09.png?alt=media\&token=86bd05e3-3865-4980-9ca9-bab0f02d3f3a) But you should know, if you change the size, it doesn't have an effect. ## textTheme This will control the title of the Text. ```dart Widget _textThemeBar() => AppBar( title: Text(PageName.APP_BAR), textTheme: TextTheme(title: TextStyle(color: Colors.white,fontSize: 30)), ); ``` It will change the color of the title to white and the `fontSize` to 30. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkIAdfiE4JJIGNUPO0%2Fapp_bar_10.png?alt=media\&token=24909dde-c943-47a8-9aec-19ec948543ae) ## primary The default value of this parameter is true. When we set to false, the icon and title will move up. ```dart Widget _primaryBar() => AppBar( title: Text(PageName.APP_BAR), primary: false, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkJtNY19LbNP6UA7nR%2Fapp_bar_11.png?alt=media\&token=3cb1f79d-ec0e-4034-ab2d-c00612ef590f) ## centerTitle This parameter is bool, the default value is false.It controls the title whether or not show in the center of the AppBar. ```dart Widget _centerBar() => AppBar( title: Text(PageName.APP_BAR), centerTitle: true, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkKaXZyHO4b-qdUmvW%2Fapp_bar_12.png?alt=media\&token=285d245d-088a-401a-8ebf-bb55dfac7273) ## titleSpacing This parameter will change the distance of the title from left. So the direction is horizontal and the default value is zero. ```dart Widget _spaceBar() => AppBar( title: Text(PageName.APP_BAR), titleSpacing: 20, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkMRH3qHnPD0yor0Av%2Fapp_bar_13.png?alt=media\&token=8d98d8bf-2a52-46ae-b0d2-c73b8889ceef) ## toolbarOpacity It will change the transparency of the elements of the `AppBar`. ```dart Widget _toolBar() => AppBar( title: Text(PageName.APP_BAR), toolbarOpacity: 0.5, ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkO6ZVzDihStx4T07e%2Fapp_bar_14.png?alt=media\&token=f61b385c-6ce4-494f-9520-d0659080aaa5) ## bottomOpacity We have used the `bottom` above, so the `bottomOpacity` will control the transparency of the part of the `bottom`. ```dart Widget _bottomOpBar() => AppBar( title: Text(PageName.APP_BAR), bottomOpacity: 0.5, bottom: PreferredSize( child: Container( alignment: Alignment.center, color: RED, constraints: BoxConstraints.expand(height: 50), child: Text( "bottom with bottomOpacity = 0.5 ", style: TextStyle(fontSize: 20), ), ), preferredSize: Size(50, 50), ), ); ``` ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkPGnIgBc8FmPm1_5j%2Fapp_bar_15.png?alt=media\&token=d15d2386-cc32-48dd-9cca-36d5b5d176d2) ## flexibleSpace I put this parameter in the last, because it is a bit difficult to use. But if you use it in the `AppBar`, it is not so useful. So I will use a `SliverAppBar` to replace the `AppBar` to describe this parameter. ```dart Scaffold( body: CustomScrollView( slivers: [ SliverAppBar( // title: Text("hello"), expandedHeight: 100, pinned: true, flexibleSpace: FlexibleSpaceBar( title: Text(PageName.APP_BAR), centerTitle: false, collapseMode: CollapseMode.parallax, background: Container( color: RED, constraints: BoxConstraints.expand(height: 100), child: Image.asset( PageImage.FLUTTER_OPEN, fit: BoxFit.cover, ), ), ), ), SliverList( delegate: SliverChildListDelegate([ SizedBox( height: 1000, ), ]), ) ], ), ); ``` We should replace all code of the Scaffold with these code. It will show as below. ![default](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkSheNMBWqC_LPmfcb%2Fapp_bar_16.png?alt=media\&token=8776cd16-54a9-4ec8-885b-e6c007dccdbc) When you scroll to top, It will show as follows. ![](https://3262132263-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LW5X4rCYpodwj4P1c8s%2F-LWkDW59JzwYMpEYfvMP%2F-LWkStLZbcBjqncCElAv%2Fapp_bar_17.png?alt=media\&token=02711a93-4f6d-4a81-97b5-f129dcd99d95) That's nice! ## Conclusion We have learned how to use the `AppBar` in the flutter. It is so common and important to us. So just keep going, we can learn very well about the widgets in the flutter. Thanks for your reading! The end. #### Whole code in [GitHub](https://github.com/FlutterOpen/flutter-widgets-examples),star to support. | Facebook Page | Twitter | GitHub | QQ Group | | ----------------------------------------------------- | --------------------------------------- | ---------------------------------- | --------- | | [Flutter Open ](https://www.facebook.com/flutteropen) | [NieBin](https://twitter.com/niebin_gg) | [NieBin](https://github.com/nb312) | 963828159 |
